Vortex Diamond Supreme Dry Diamond Core Drill Bits Fast Dry Drilling for Brick, Block & Masonry

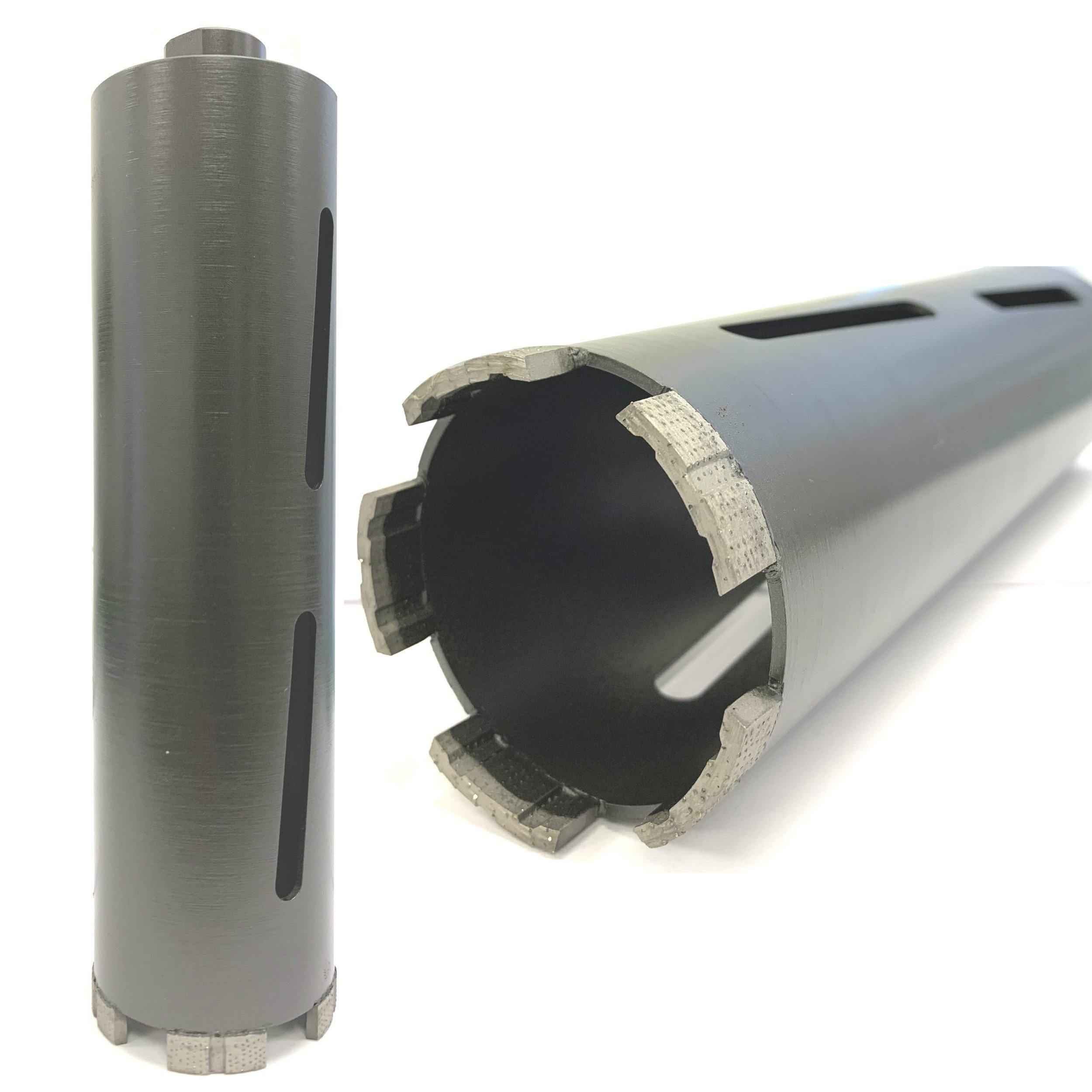

The Vortex Diamond Supreme Dry Core Drill Bit Series is engineered for fast, efficient, and clean dry drilling in soft brick, concrete block, CMU, and soft masonry materials. Manufactured with high-concentration diamond-aligned segments and laser-welded for maximum strength, these core bits deliver long life, high speed cutting, and dependable performance for professional contractors, electricians, plumbers, and HVAC installers.

Designed specifically for dry drilling with hand-held tools, these bits feature precision laser-cut cooling slots to manage heat and dust — even without water. The universal 5/8"-11 threaded arbor ensures compatibility with most grinders and hand-held core drills.

Note: Not recommended for drilling solid poured concrete or reinforced concrete. For rebar or dense concrete, choose Vortex Diamond Wet Core Bits.

✅ Key Features

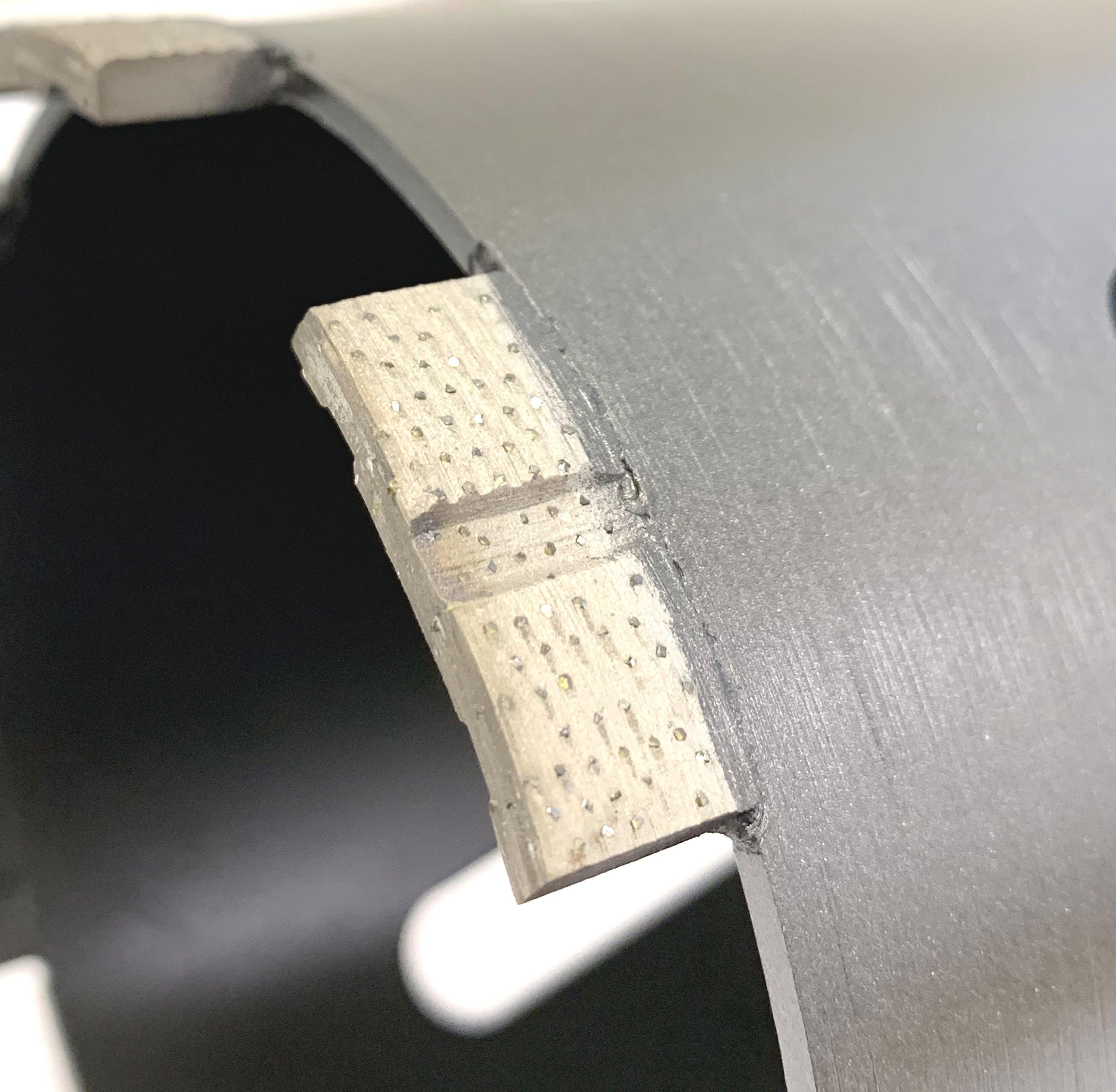

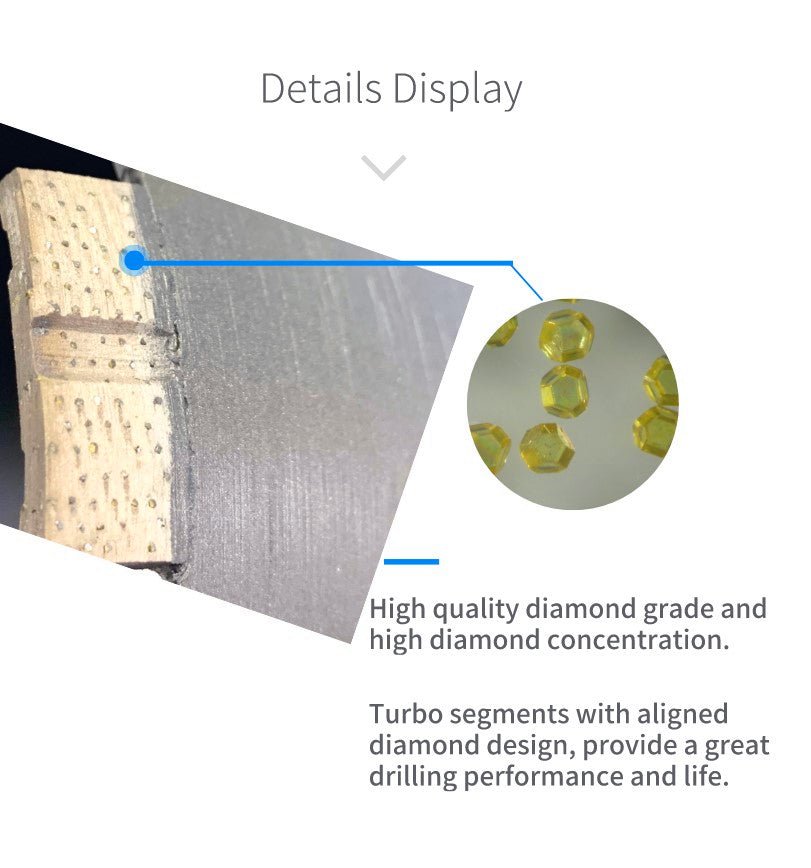

• Supreme-grade laser-welded diamond segments

• High diamond concentration for extended cutting life

• Designed for dry drilling

• Best for brick, block, and soft masonry

• 5/8"-11 threaded arbor for universal fit

• 9" drilling depth — ideal for wall penetrations

• Laser-cut cooling slots reduce heat & dust

• Smooth drilling with hand-held drills or grinders

✅ Best For

• Electrical conduit openings

• Plumbing pipe penetrations

• HVAC vent and duct holes

• Residential & commercial service work

• Utility wall pass-throughs

✅ Product Specifications

✅ Top Searched FAQ — Dry Diamond Core Drill Bits

1. Can I use a diamond core bit without water?

Yes — dry diamond core drill bits are designed for dry drilling without water, especially in brick, block, and soft masonry. They include cooling slots to control heat and dust.
For reinforced concrete or hard aggregate, a wet diamond core bit is recommended for longer life and faster drilling.

2. What materials can dry diamond core bits drill?

Dry diamond core bits are ideal for:

• Soft brick

• Concrete block (CMU)

• Soft masonry

• Lightweight concrete

• Aerated concrete (AAC)

Not recommended for:

• Reinforced concrete

• Granite or natural stone

• Very dense structural concrete

3. What’s the best drill for dry diamond core bits?

Use a hand-held drill or angle grinder with:

• 5/8"-11 threaded arbor

• Low-to-medium speed

• Torque control / clutch preferred

Avoid high-speed drilling — controlled RPM protects the diamond segments.

4. How do you keep a dry core bit cool?

To reduce heat and extend blade life:

• Start slowly, then increase pressure

• Use a pulsing / step drilling technique

• Allow airflow through laser cooling slots

• Do not force the bit — let the diamonds cut

5. Can dry core bits cut reinforced concrete?

Technically they can, but not recommended. Rebar overheats and wears the segments quickly.
For rebar or structural concrete → use a wet diamond core bit.

6. Why is my dry core bit overheating or smoking?

Typical causes:

• Drilling solid concrete instead of masonry

• Too much pressure / too high RPM

• Not pulsing the drill

• Material too dense for dry coring

Fix by slowing down, letting air cool the bit, and easing pressure.

7. What arbor size do dry diamond core bits use?

Most professional dry core bits use:

• 5/8-11 threaded arbor

Compatible with many grinders & hand-held core drills.

8. Do I need a hammer drill for dry coring?

No.
Never use hammer mode with diamond core bits — it can damage segments.
Use rotary drilling only.

9. How long do dry diamond core bits last?

Usage life depends on:

• Material hardness

• Drill speed & pressure

• Operator technique

In soft masonry, high-quality bits offer long service life.

10. Are dry core bits good for electricians & plumbers?

Yes — they're widely used for:

• Pipe penetrations

• HVAC openings

• Electrical conduit holes

• Wall pass-throughs

• Utility installs

11. What sizes do dry core drill bits come in?

Common dry core bit sizes:

2" to 6" diameter
9" depth typical

12. Which is better — dry vs wet core drill bit?
