PCD Asphalt Road Milling Bits Wirtgen Rehabilitations Conical Picks
1. Road Milling Bits Description
Road milling bits are also known as asphalt and concrete cutting bit, road planning picks, road milling machine cutter teeth, which are used as wear parts of road milling machine in road construction. Bit is installed in milling drum of milling machine and cut the road surface. The bits have two type, asphalt bits and concrete bits. According to the different road hardness with different bits.
The service life of PDC cutter is 30 times of the tungsten carbide cutter when used for milling asphalt concrete. The milling efficiency is 20% higher than tungsten carbide cutters. SWPCD/20 is cap-shaped carbide tip for removing asphalt layers, pick head without or with extractor groove as a dismantling aid. The shank diameter is 20mm, carbide tip diameter is 19mm x 10mm, high wear-resistant and strong breaking strength. Recommend for the large milling machines of Wirtgen, Dynapac, Cat, Kennametal or Sanvik.

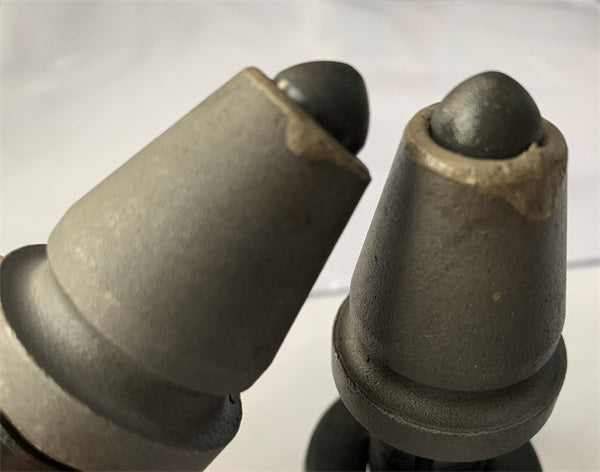

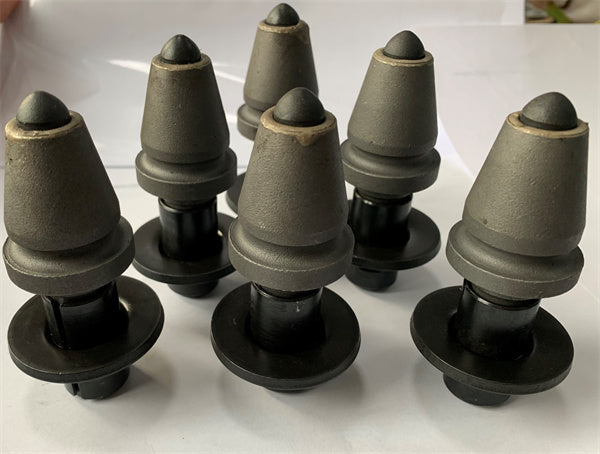

PCD (Polycrystalline Diamond Compact) Bits
|Cap-shaped carbide tip for removing asphalt layers.
|Held in the toolholder bore with a shank diameter of 20mm
|PCD Size per pick
13mm, PCD size can be customized
|Quantity per toolbox
|Weight per toolbox
3. Milling Bits Character
Taper-shaped cutters, the tip has strong impact and crushing force to the ground.
Improve the wear resistance and maintain the sharpness by using PCD as the tip
Reduce “Spall” because of the impact support from the thick tungsten carbide substrate
Reduce the replacement of cutters effectively, shorten engineering period, reduce the milling cost and improve the milling quality
Extremely destructive to the ground, smashing the ground and dig out the gravel, the speed is greatly improved than drilling by grinding
The service life of PDC cutter is 30 times of the tungsten carbide cutter when used for milling asphalt concrete. The milling efficiency is 20% higher than tungsten carbide cutters
4. Milling Machines Type
SWPCD/20 can be used on compact and large milling machines.
